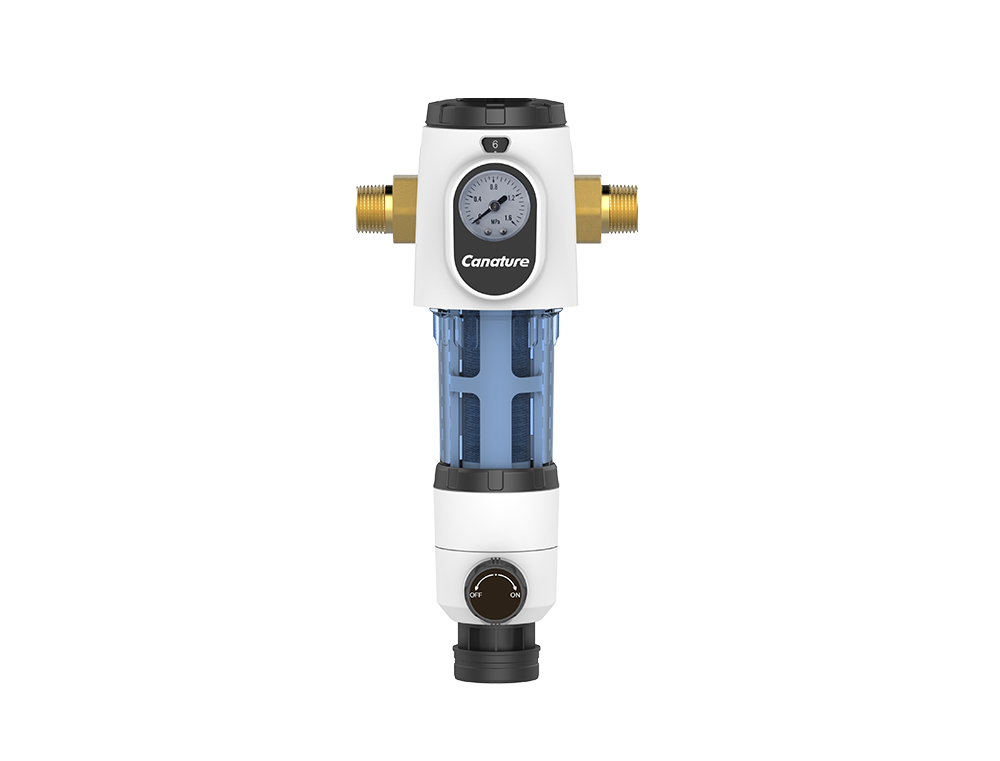

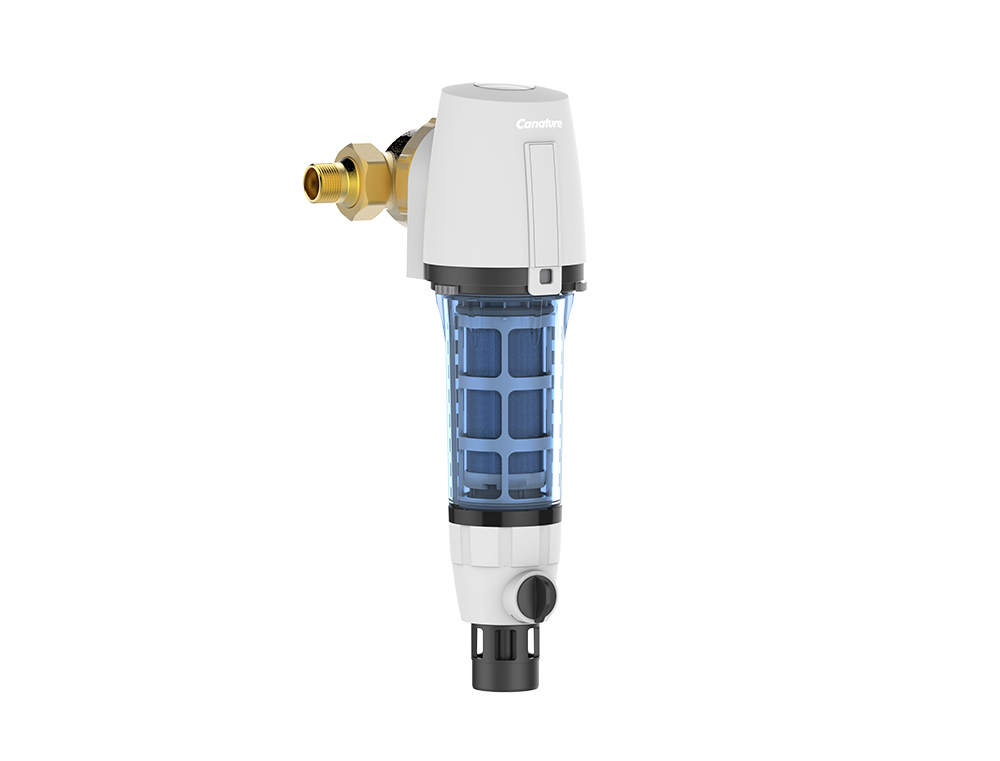

M-Series Pre-Filters
Features:

Luxurious decorated head cover, built in pressure gauge, visually display water pressure, beautiful and high end.

Equipped with a practical service ring as a reminder, help you to regularly clean the pre-filter.

360° universal connection design, rotatable flange for vertical and horizontal installation.

Specification
Model Rated Flow Rate Filter Mesh Operating Pressure Connection Thread Ambient Temperature Water Supply Carton Dimension Gross Weight
CPF-3-M 3 m³/h 40 μm 0.1MPa~1MPa 3/4" Female & Male 1"Female & Male 5℃~40℃ Municipal 346x183x123(mm) 1.6Kg
CPF-4-M 4 m³/h Municipal 446x210x131(mm) 2.1Kg
CPF-8-M 8 m³/h 1" Female & Male 1.25" Female & Male Municipal 490x255x156(mm) 3.5Kg
